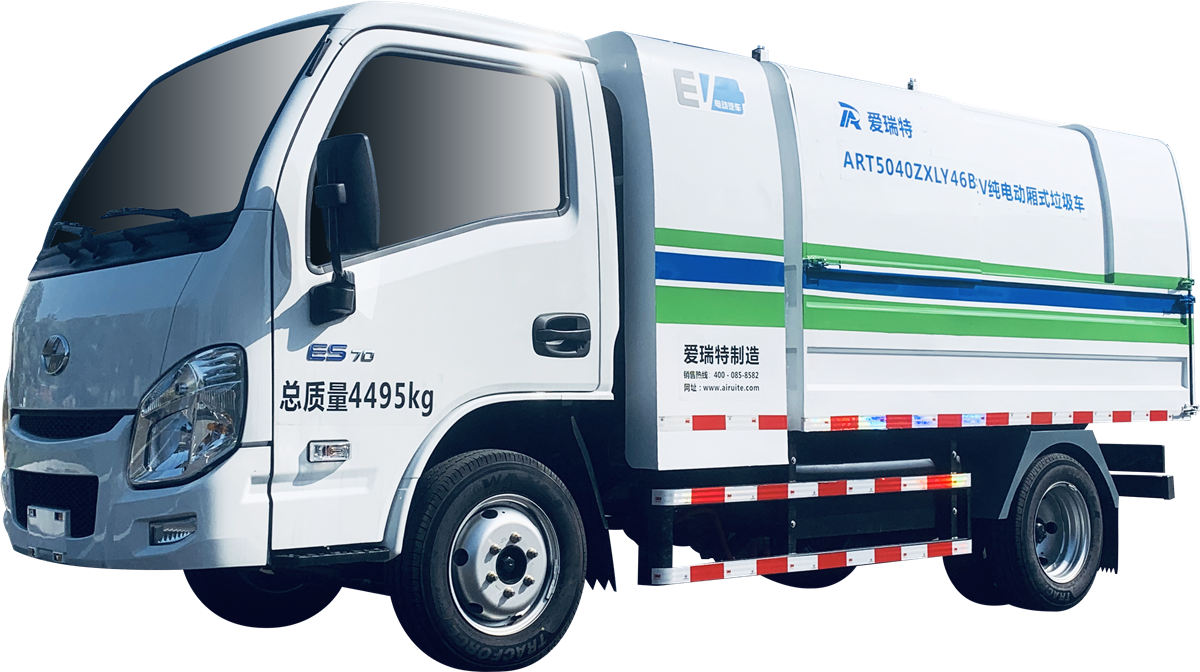

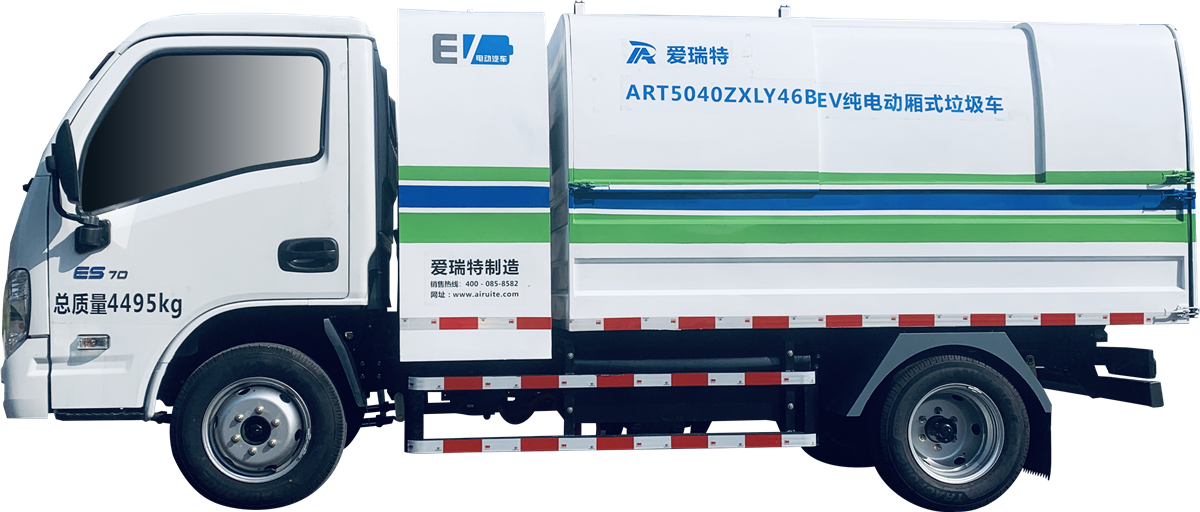

ART5040ZXLY46BEV pure electric van garbage truck is mainly used for the collection and transportation of classified garbage in property community, township, business district, scenic spot, school and other places, with low cost and zero emission.

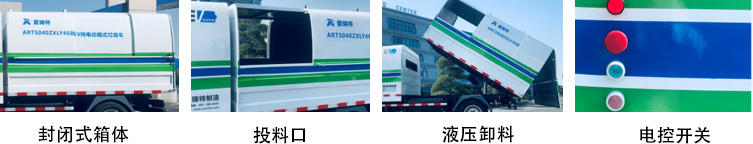

◆ box body: sealed tipping dustbin structure, high-quality high-strength steel plate, electrophoretic rust prevention treatment and corrosion resistance; The car body adopts lightweight design, light weight, push-pull door, which is convenient for garbage collection.

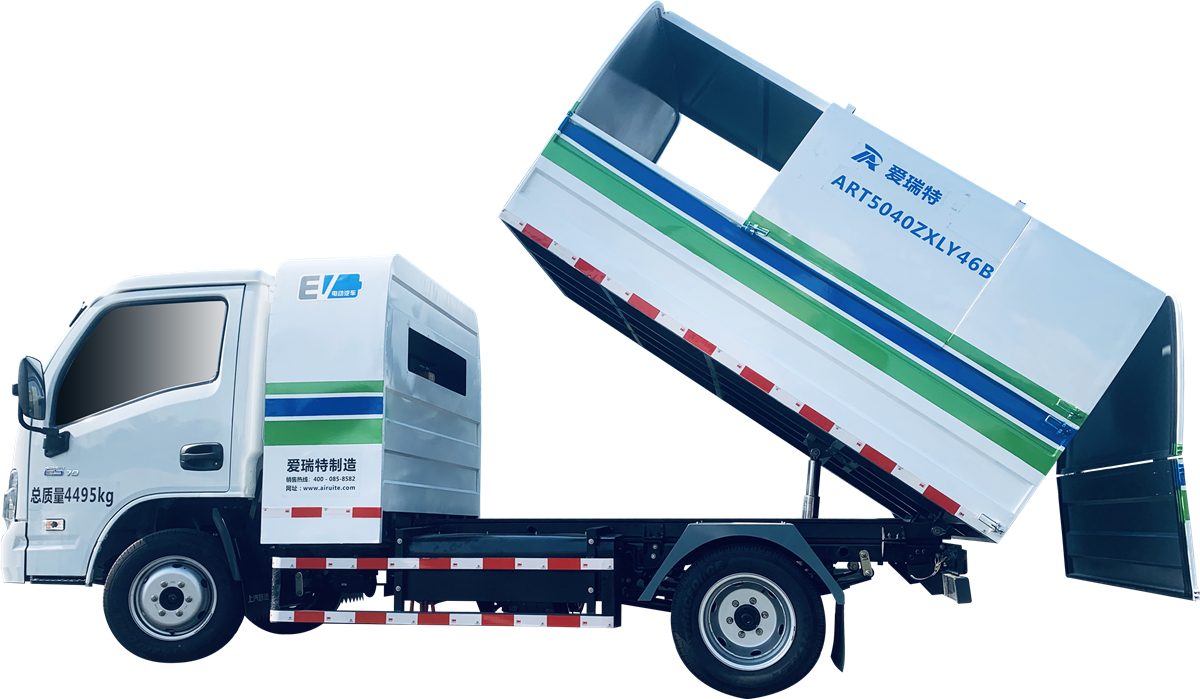

◆ unloading method: backward tipping unloading, with a maximum tipping angle of 50 °
Entry name | Company | Parameter |
Chassis model / brand | / | SH1047PCEVNZ/Leap forward |
Total mass | kg | 4495 |
Curb weight | kg | 2380 |
Wheelbase | mm | 2850 |
Battery brand | / | Ningde times (lithium iron phosphate) |
Battery capacity | kWh | 66.8 |
Range | km | 279(Working condition method) |
Maximum speed | km/h | 90 |
Maximum climbing gradient | % | 20 |
Minimum turning radius | m | 5.7 |
Dustbin capacity | m3 | 5 |
Braking distance | m | ＜11.4 |
Car body size (L × W × H) | m | 2680×1650×1320 |
Overall dimension (L × W × H) | mm | 5020×1650×2185 |
